US Wall Plate HDMI KVM Extender with USB, Decora Type
SHMU-MA250WW
Short Haul Single Gang Wall-Mount HDMI USB 2.0 Extender over CATx, 60M, Auto EDID, HDCP, SHMU-MA250WW
SHMU-MA250WW = SHMU-A200WL (Tx, USB Host) + SHMU-A250WR (Rx, USB Device)
SHMU-MA250WW, Wall-Mount HDMI USB 2.0 Extender, consists of a HDMI Transmitter SHMU-A200WL (USB Host) and a HDMI Receiver SHMU-A250WR (USB Device). It extends the HDMI video and USB 2.0 signals up to 40 meters at 1080p via a single category cable in a point-to-point configuration.
The Receiver unit SHMU-A250WR provides DC 5V to each USB-A port and the power supply is not required on the Tx side when the Transmitter unit can draw sufficient power from the Host Device (PC/ Laptop).
SHMU-MA250WW provides comprehensive EDID management to ensure that HDMI source is displayed at an optimal resolution and format without compatibility issues. Comprising a compact Transmitter and Receiver pair, it can be installed in minutes and requires no special programming.
Wall-Mount HDMI USB 2.0 Extender, SHMU-MA250WW, is compatible with Windows, MAC and Linux OS. There is no need to install software or driver, just plug and play. Extender unit provides a durable, high quality connection, complies with USB 2.0 specifications, and is downward compatible with USB 1.1 and USB 1.0 devices, which ensures reliable data communication.

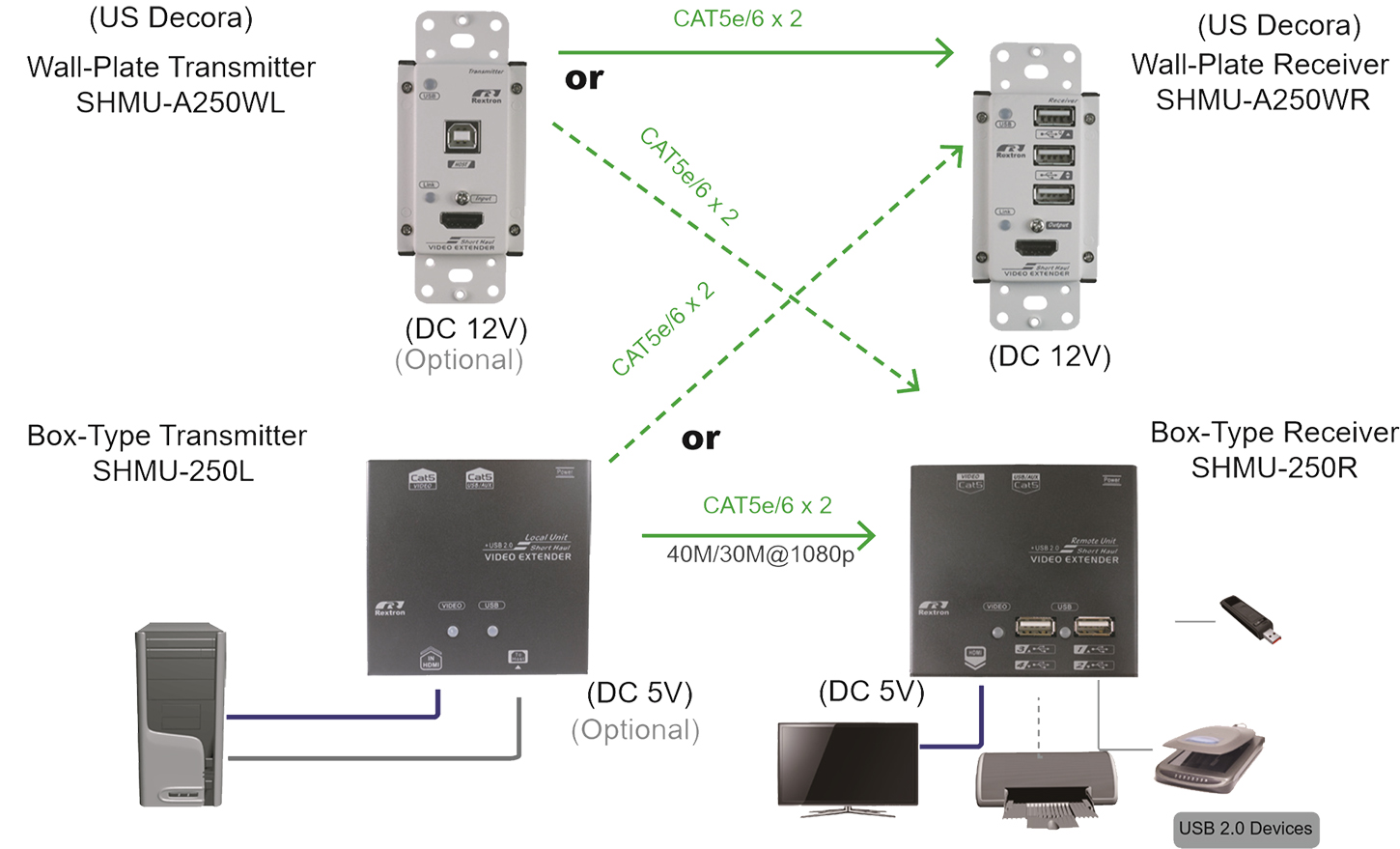

Rextron offers a series of USB 2.0 extender family products, and the box type and wall plate type family products are interoperable which means that it allows a box type transmitter to be linked to a wall plate type receiver via CATx cable, and vice versa. The exquisite and compact design of Rextron Single Gang/ Dual Gang Wall plate Extender series provide an easy surface/wall mounting, allowing users to conceal the cable or other installed equipment and place the connected units easily.
- Extend HDMI signal and 4 USB up to 60 meters @ 1080i / 40 meters @ 1080p (CAT6)
- Auto EQ adjustment for easy use
- Fully compatible with HDMI standard by DDWG
- HDTV compatible; support 1080p (Full HD), 1080i, 720p (HD)
- 3D-video, HDCP compliant and Blu-ray ready
- Plug-and-Play allows you to add or remove devices at any time
- USB compatible for most of the popular USB devices (USB webcams, USB printers, USB Scanner, external hard disk drives ....)
- Unique mechanism design of two ports on top for easily connecting USB peripherals.
- Automatically read EDID data from the connecting display and store (a record) the last EDID data to the video extension system
- No software needed or driver required
Model Name |
SHMU-MA250WW |
|
SHMU-A200WL (Transmitter) |
SHMU-A250WR (Receiver) |
|
Input |
HDMI x 1 |
RJ-45 x 2 |
Output |
RJ-45 x 2 |
HDMI x 1 |
EQ Adjustment |
Auto |
|
USB 2.0 |
Mini-USB x 1 |
USB-A x 4 |
LED |
Multi-Color x 2 |
Multi-Color x 2 |
Video Resolution (Max.) |
1080p |
|
Extension Distance |
50M (CAT5e) @ 1080i (8bit x 3) |
|
Power Supply |
USB BUS Power (DC 5V each unit) |
|
Enclosure |
Metal |
|
Weight (g) |
x |
x |
H x W x D (mm) |
x |
x |
